ECG display with Arduino

By Marco Ventimiglia on October 6, 2022

This ECG (electrocardiogram) unit has an integrated 2.8 “display. The latter can show individual heartbeats in two different formats and a Poincaré texture. It is battery powered and can be worn around the neck on a lanyard.

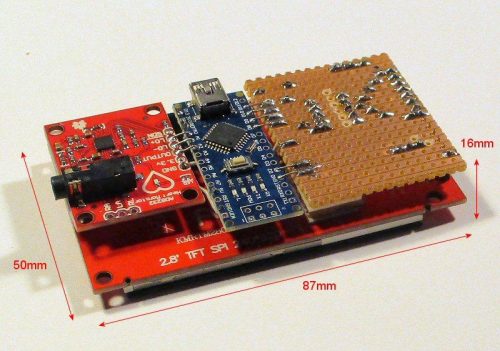

The device is based on an Arduino Nano, which receives data from ECG sensors and displays them on a 2.8 “TFT display.
