1WAMP, Open Hardware Guitar Amplifier
A great open source hardware project dedicated to guitarists! Guys at ElectroSmash just released 1WAmp, a guitar ampli with extended features.
Here they are:
It consists of a JFET based pre-amplifier, a Big Muff Pi a.k.a BMP based Tone control and an LM386 power amplifier. The dual JFET pre-amp provides tube-like sound, the BMP provides a nice tonal range while the LM386 can drive various types of output’s ranging from headphones to speaker cabinets.

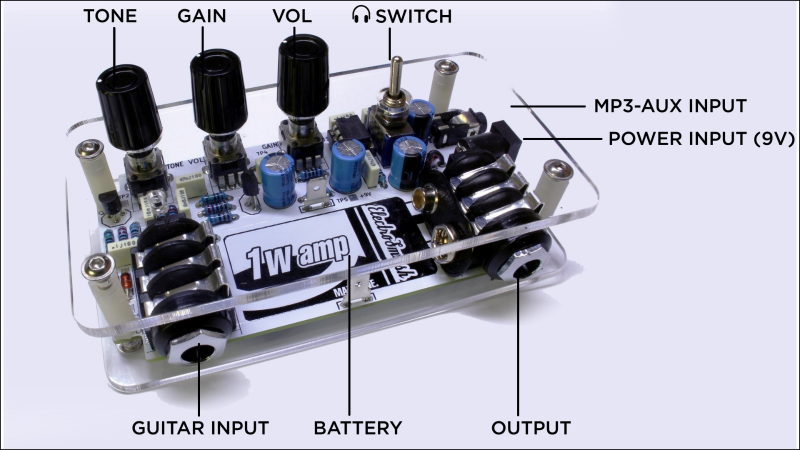

1Wamp had controls for Tone, Volume and Gain, a Speaker/Cabinet output, a headphone output with an integrated attenuator switch and an aux. input. The aux. input is handy as it adds any line level input signal to the guitar sound, allowing you to practice with metronome or MP3 backing tracks or drum bases. It runs off either a 9V battery or can be powered via an external power source. [ElectroSmash] have released all the native KiCad design files. If you’d like a quick look at the design, check out the Schematic PDF and the Bill of Materials. There’s also a handy assembly manual [PDF] that shows how to build it in five easy steps.
There are also other interesting info and material from the official website. Like a detailed analysis of the LM386 op-amp. Want to add some bling to your 1Wamp build? There are a lot of handy tips on how to add cool LED lighting to the amplifier if it is mounted in a standard metal enclosure. However, the PCB has some really nice graphics, so an acrylic-sandwich-type enclosures look best.
