SinoVoip is Ready to Launch Two New SBCs: Banana Pi BPI-P2 Zero & Banana Pi BPI-R64
Over the last week, SinoVoip has posted wiki pages for its open-spec, unpriced Banana Pi BPI-P2 Zero and Banana Pi BPI-R64 SBCs. Both boards support Linux and Android.
As noted by the company BPI-P2 Zero has very similar features compared to the earlier BPI-M2 Zero, but is wider due to the addition of an 8GB eMMC flash, an Ethernet port, and PoE function. Other features are the same as the M2 Zero, which itself is an imitation of a Raspberry Pi Zero W. The P2 Zero board runs Linux and Android on a 1.2GHz, quad -A7 Allwinner H2+, which is like an Allwinner H3, but with HD instead of 4K video support. The SoC integrates a Mali400 MP2 GPU.
Other BPI-P2 Zero features include:
- CPU: Allwinner H2+, Quad-core Cortex-A7.
- 512MB DDR 3 SDRAM.
- WiFi (AP6212) & Bluetooth onboard.
- Mini HDMI.
- 40 PIN GPIO,It includes UART, SPI, I2C, IO etc
- 100M LAN
- IEEE 802.3af PoE standard PoE module support
- 8G eMMC flash onboard.

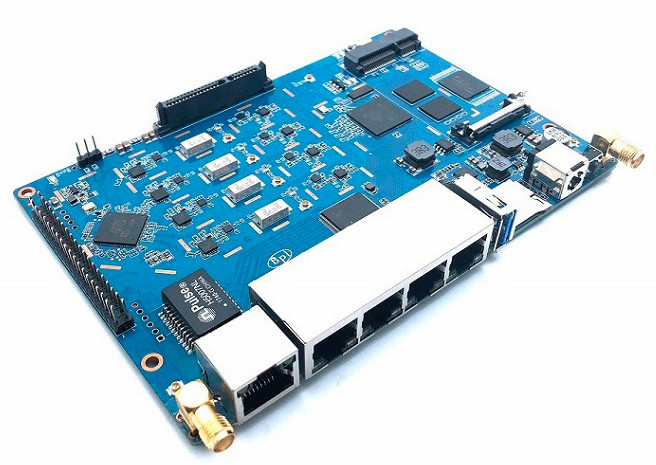

The Banana Pi R64 is a router based development board, which can run on a variety of open source operating systems including OpenWrt, Linux. This SBC follows other Banana Pi router boards such as the Banana Pi BPI-R2, and it features a 1.35GHz dual-core, Cortex-A53 MediaTek MT7622 instead of the quad -A7 MediaTek MT7623N found on the R2.
Common features with the R2 board include its 148 × 100.5mm dimensions, as well as its 8GB eMMC, 4x GbE ports, WAN port, microSD slot, IR receiver, 40-pin expansion connector, and mini-PCIe slot. The board has 1GB instead of the R2’s 2GB DDR3.
The MT7622 SoC is described as the world’s first 4x4n 802.11n/Bluetooth 5.0 system-on-chip designed and built for premium networking devices.
There’s also a dedicated Network Accelerator engine, which includes a storage accelerator, an HNAT HQoS function, and the MediaTek Wi-Fi Warp Accelerator.
