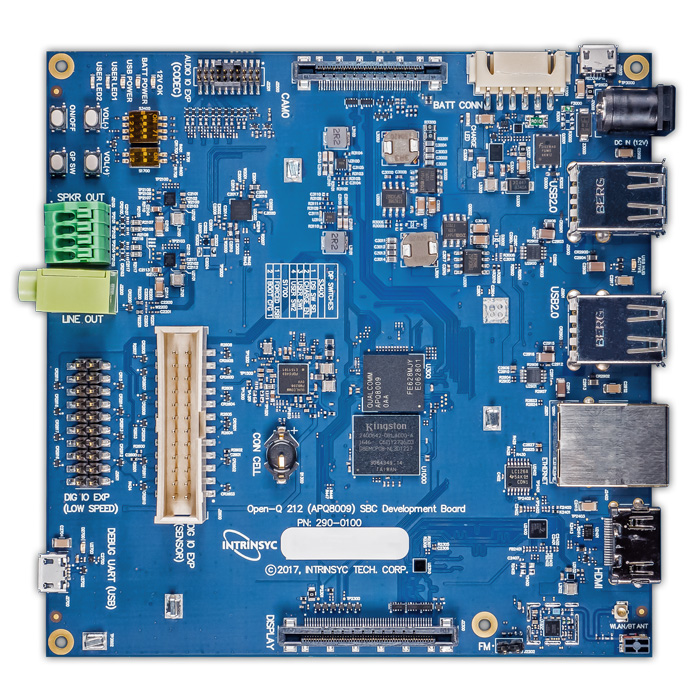

Open-Q™ 212 Single Board Computer for your IoT Device
Intrinsyc’s Open-Q™ 212 SBC is a full-featured, production-ready, low-cost IoT computer based on a powerful quad-core ARM Cortex A7 (32-bit) 1.267GHz processor, with integrated GPU and DSP. The SBC supports an LCD display up to 720p, HDMI 720p H.264/H.265 playback, one 8MP camera, four microphone inputs, and amplified stereo outputs.
The SBC is ideal for creating next-generation voice controlled devices, with noise cancellation technology, connected microphone/speakers, and other internet enabled devices or open source projects.
In addition to the 212 SBC, Intrinsyc offers a full range of development kits and production-ready computing platforms, turnkey product development and production of custom embedded computing platforms.
“We expect our Clients to use the board first as a development kit and then subsequently as an embedded SBC in their final product. It’s also likely that some Clients would want to de-feature or de-populate the SBC to lower the cost or to fit in a particular enclosure.Our team has the experience in hardware, software and mechanical engineering, we can quickly take the SBC’s core technology as is, and adjust the peripheral set. It’s our Client’s choice on how to proceed.” Said Intrinsyc.
Open-Q™ 212 SBC Specifications:
Processor
• Quad-Core ARM Cortex A7 (32-bit) 1.267GHz, GPU, DSP
Memory/Storage
• 1GB LPDDR3 RAM
• 8GB eMCP Flash
• MicroSD card socket
Wireless
• Pre-scanned Wi-Fi 802.11n 2.4Ghz, with chip antenna and U.FL antenna connector
• Bluetooth 4.1 + BLE
LCD/Display
• Up to 720p LCD or up to 720p HDMI Type A
Camera
• Up to 8MP over 2-lane MIPI CSI
Video
• 720p@30fps playback
• Up to 720p playback with H.264 (AVC) and H.265 (HEVC)
• Up to 720p H.264 (AVC) capture
Audio
• 4x microphone inputs
• 2x amplified speaker outputs
• 2x stereo line outputs
Power
• PMIC and Li-Ion battery support
I/O
• 4x USB 2.0 Type A host mode, Ethernet, Serial, RTC, I2S, GPIO, sensor header
OS Support
• Android 7 Nougat, Call for Linux
Operating Environment
• Input 12V/3A or single-cell Li-Ion battery
• Operating Temperature 0° C to +70°C
• Nano-ITX 120mm x 120mm
