NanoPi2 incredible tiny raspi2 compatible board released!

By on November 4, 2015
Pin It

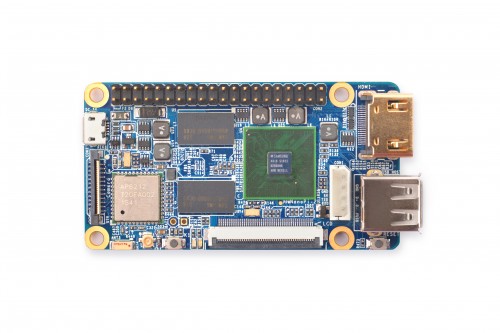

DSC_7860

The NanoPi2 quad core Cortex A9 Linux single board computer has been released as a high performance companion to FriendlyARM Computer Company’s NanoPi board. NanoPi2 features a Samsung S5P4418 Quad Core A9 processor at 1.4GHz. The NanoPI2 includes 1GB of 32bit wide DDR3 RAM, different display interfaces, and two MicroSD slots. The on-board AP6212 Wireless and Bluetooth chip provides 802.11 b/g/n, AP mode, BLE 4.0 and HS mode. This is a complete open source project with open source boot-loader, kernel, and file systems. New Wiki and Git Repositories with plenty of tutorials fill out the support system. NanoPi2 sells for only $32 US introductory price and has a 40 pin header compatible with Raspberry Pi and NanoPi, and the FriendlyARM Matrix family if sensors and drivers.

NanoPi2 Features:

SoC: Samsung S5P4418 Quad Core Cortex-A9, 1.4G Hz

RAM: 1GB 32bit DDR3

Storage: 2 x Micro SD Slot

Connectivity: AP6212 WiFi/Bluetooth, 802.11 b/g/n, AP mode, BLE 4.0, HS mode

HDMI: 1 x HDMI 1.4A, Type-A

LCD: 0.5 mm spacing 45 pin interface

Camera: 0.5mm spacing 24 pin DVP interface







GPIO: 40 pin GPIO pin header, compatible with Raspberry Pi’s GPIO pin header

Debug Serial Port/UART0: 2.5 mm spacing 4pin interface

USB: Micro USB 2.0 host Type-A; for data transmission and power input

OS: Android or Debian

PCB: Six-layer

Dimension: 75 x 40 mm

Weight: 22 g



Home site: www.friendlyarm.com

NanoPi site: www.nanopi.io

Wiki site: http://wiki.friendlyarm.com/wiki/index.php/NanoPi_2
