How to improve a security camera with Intel IoT Gateway

By on March 14, 2017
Pin It

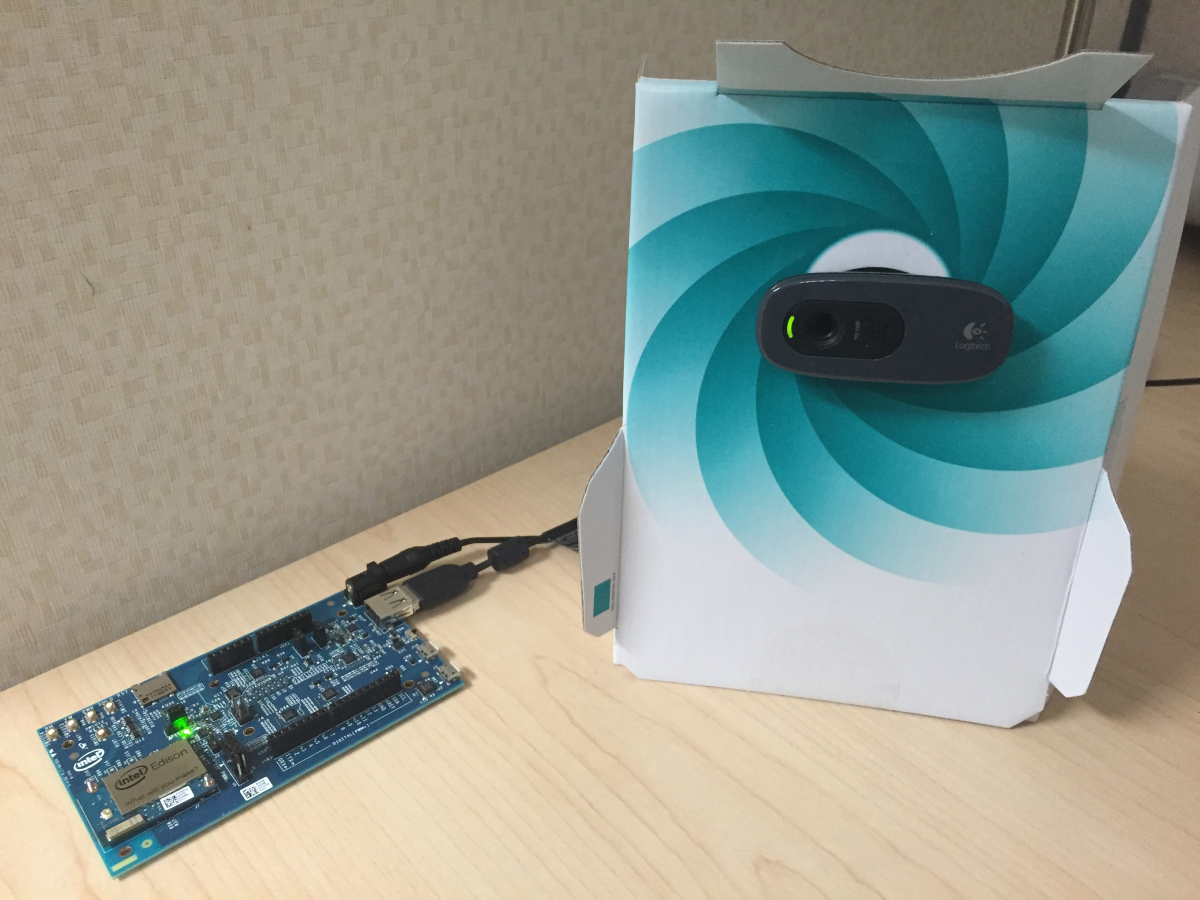

First of all you need a webcam UVC compliant as this Logitech* C270 Webcam with HD 720P resolution and 2.4 GHz Intel® Core™ 2 Duo processor. The webcam plugs into the USB port of Intel® Edison development board which turns it into an IP webcam streaming video to a website. Using the webcam with the Intel® Edison development board allows for the camera ‘sensor’ to be easily propagated to different locations around a home. The Intel® IoT Gateway captures images from the stream and uses OpenCV to analyze them. If the algorithms detect that there is a face or a person in view, it uploads the image to Twitter*.

The Intel® Edison development board continuously stream a feed that the Gateway could capture from at any time. This was accomplished using the mjpeg-streamer library.

The brains of the whole security camera is on the Gateway. OpenCV was installed into a virtual Python* environment to create a clean and segmented environment for OpenCV and not interfere with the Gateway’s Python version and packages.

To quickly create a program and connect a large number of capabilities and services together as with this project, Node-RED* was used. Node-RED* is a quick prototyping tool that allows the user to visually wire together hardware devices, APIs, and various services. It also comes pre-installed on the Gateway. Make sure to update to the latest version.

The “http request” node sends a GET message to the IP webcam’s snapshot URL. If it is successful, the flow saves the image. Otherwise, it tweets an error message about the webcam.

Click here for code and blueprints.
