HACKADAYPRIZE: Leavening Cell

By on May 22, 2019
Pin It

Our Big Fan and collaborator Vittorio Loschiavo has recently presented one new Open Source project “Hackaday Prize 2019

You can help him with your vote!

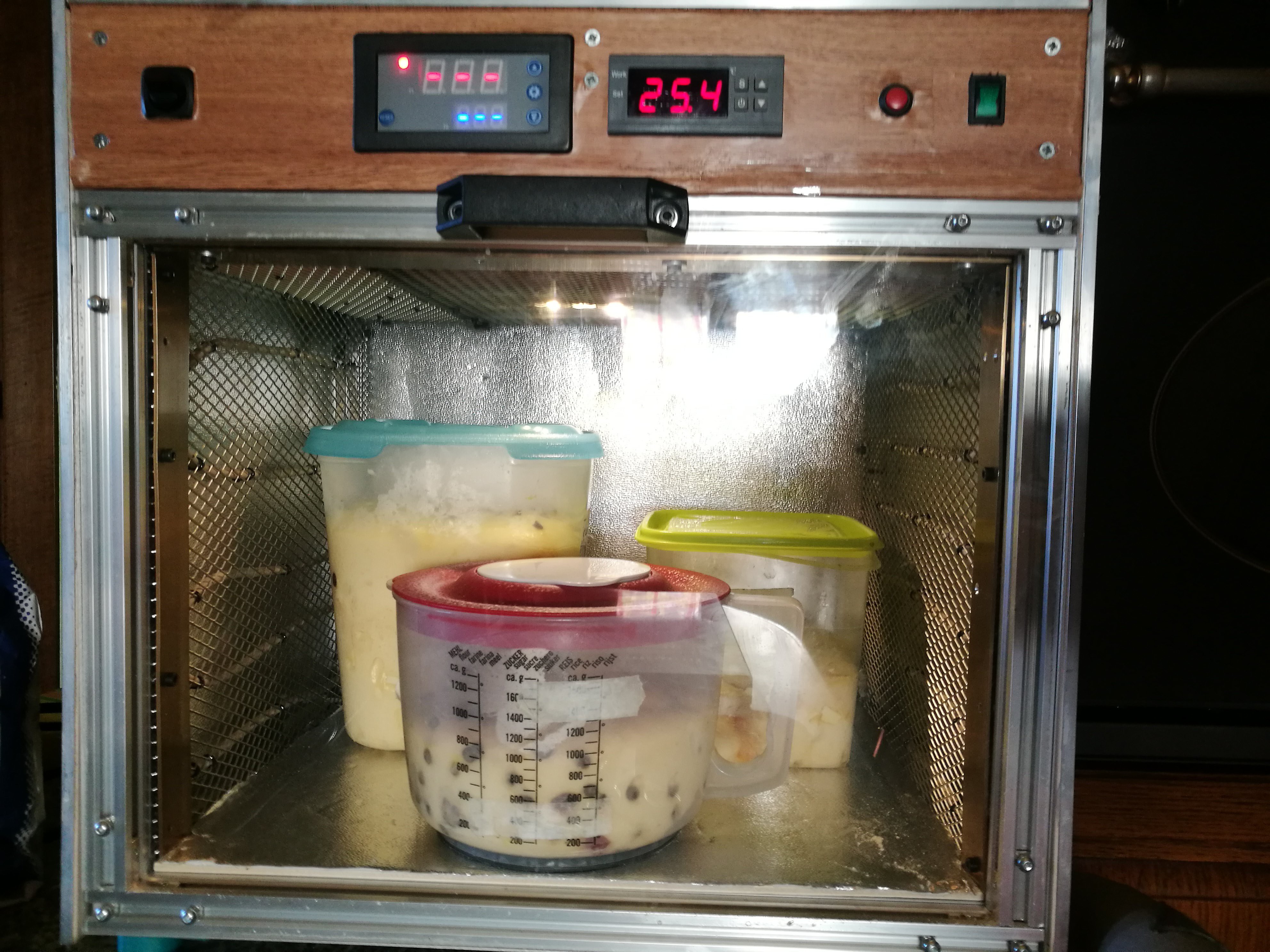

Leavening cell





Leavening cell suitable for leavening at the best and at a constant temperature of about 26 ° C to 28 ° C of the sourdough, used to obtain: Bread, Focaccia, Pizzas, Brioches, Desserts, Large Leavened (Colomba, Pandoro, Panettone, etc).

The structure is made with 20×20 aluminum profiles that are normally used to make 3D frames, CNC, etc. TThe profiles are held together with aluminum angulars for 20×20 profiles. In the inner wall of the cell and in the upper part, I fixed a metal grid (it can be of any material as long as it has a certain rigidity and can withstand at least up to 40-50 ° C). As a heating element, I used a heated 50-watt cable, 6 meters long normally used to heat aquariums and terrariums. The heated cable is fixed to the metal grid by means of plastic clamps.

For the covering of the aluminum frame I used 6 mm thick wooden panels, the inner walls were covered with heat-reflecting insulating material (or the common aluminum roll fixed with double-sided adhesive tape). For the temperature control of the leavening cell, I used a double timer with relay output and a thermostat with a probe. Internally, at the top, I inserted a 12VDC LED lamp. On the front panel, in addition to a double timer and a thermostat, there is also a general on/off switch, an on/off button for the lamp. At the top, hidden from view, I inserted a low voltage power supply (12 VDC) and the relative wiring. On the back, there is a general 220VAC power outlet with an illuminated switch and a fuse.









HOW TO VOTE

  1. First off you have to register:

go on https://hackaday.io, and click on the “Join Hackaday.io” button:



  1. Insert your email address and the password for your new account:

Then click on “Sign up”

  1. Customize your profile:

Compile all required fields, click on
The “save your profile” button and Go ahead specifying what you’re Interested in.

  1. In your email box, look a for an email by “Hackaday.io”, click on the “Verify email” button.
  1. Finally, go to https://hackaday.io/project/164233-leavening-cell  and like the project



Thank you very much!
