SolidRun i.MX 8M Mini SoM Features Gyrfalcon Neural Accelerator
SolidRun announced an i.MX8M Mini based compute module aimed at a wide range of IoT and industrial applications including digital assistant solutions, autonomous cars, security camera systems, video and audio analytics, and digital signage.
The Linux- and Android-supported i.MX 8M Mini SOM has the same footprint as last year’s i.MX8M-based i.MX8 SOM and similarly works with the open-spec HummingBoard Pulse board that was announced with the i.MX8 SOM.

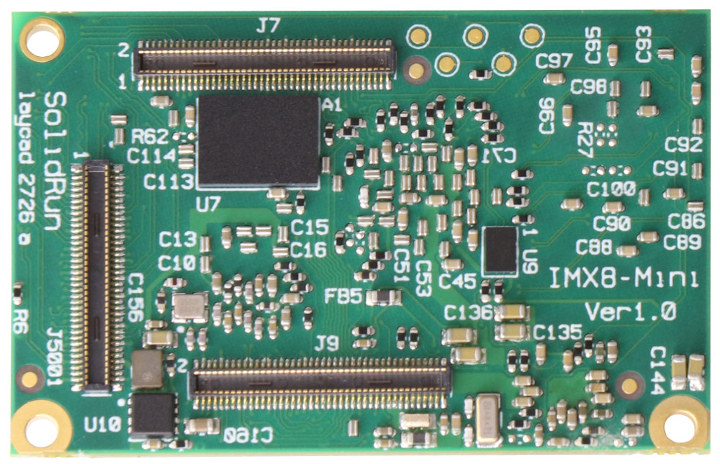

i.MX 8M Mini SOM combines all of the essential components necessary to quickly prototype powerful AI solutions into a compact 47mm x 30mm module, including processor and memory options, a GPU, Gyrfalcon’s Lightspeeur® 2803S Neural Accelerator chip, optional flash storage, audio and video input and output and more.
You can purchase the i.MX 8M Mini SOM in Solo, Dual, or Quad models for one to four cores. They are otherwise identical except that the Solo ships with up to 3GB LPDDR4-3000 while the others can go to 4GB.
Specifications include:
- SoC (one or the other)
- NXP i.MX8M Mini S single core Arm Cortex-A53 processor up to 1.8 GHz, Arm Cortex-M4 core up to 400MHz, GC NanoUltra 3D GPU + GC320 2D GPU
- NXP i.MX8M Mini D dual-core Arm Cortex-A53 processor up to 1.8 GHz, Arm Cortex-M4 core up to 400MHz, GC NanoUltra 3D GPU + GC320 2D GPU
- NXP i.MX8M Mini Q quad-core Arm Cortex-A53 processor up to 1.8 GHz, Arm Cortex-M4 core up to 400MHz, GC NanoUltra 3D GPU + GC320 2D GPU
- NPU – Gyrfalcon Technology Lightspeeur 2803Sartificial intelligence accelerator
- System Memory
- MX8M Mini Solo – Up to 3GB LPDDR4-3000
- MX8M Mini Dual/Quad – Up to 4GB LPDDR4-3000
- Storage – Optional eMMC flash, and optional QSPI-NOR flash
- Video
- Decode – 1080p60 VP9, VP8, HEVC/H.265 decoder, AVC/H.264
- Encode – 1080p60 AVC/H.264 encoder, VP8 encoder
- Networking
- Atheros Gigabit Ethernet transceiver
- Optional wireless module with 802.11b/g/n WiFi 4 and Bluetooth 4.2/5.0
- 3x Hirose DF40 board-to-board connectors exposing the following interfaces:
- Storage – NOR Flash, SD/microSD, PCIe SSD
- Display I/F – MIPI DSI up to 1080p60
- Camera I/F – 1x 4-lane MIPI CSI-2
- USB – 2x USB 2.0 interfaces
- Serial – 2x RTS/CTS/Rx/Tx interfaces, and 1x Tx/Rx interface
- Audio – 20 channels 32bits @ 384khz, DSD512, SPDIF TX&RX, 8x PDM DMIC channel
- 1x PCIe 2.0
- 2x I2C, 1x SPI, 4x PWM, 75 GPIO
- Debugging – Test point header for JTAG
- Misc – RTC
- Power Supply – Main voltage: 5V, I/O voltage: 3.3V, SOM supply: 3.3V/1A
- Dimensions – 47 x 30 mm
- Temperature Range – Commercial & industrial
