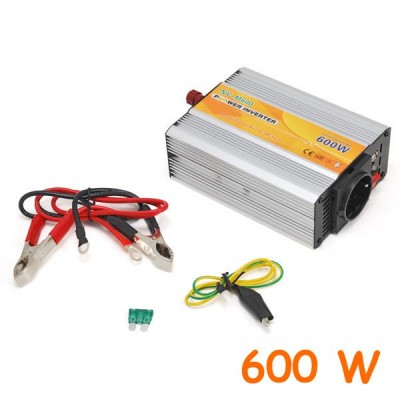

Modified Sine Wave DC-AC Power Inverter – 12 V – 600 W + USB

By Boris Landoni on January 24, 2019

12 Vdc to 220 Vac inverter with modified sinusoidal output waveform and maximum power of 600 watts.
The inverter is equipped with overload protection, input overvoltage, short circuit and low battery alarm.
It has USB output (5 V – 500 mA), Schuko socket and can be used to power: TV, VCR, PC, HI-FI systems, refrigerators, etc.

The package also includes cables for connection to the battery.
