FM Receiver Module

By Boris Landoni on January 28, 2019

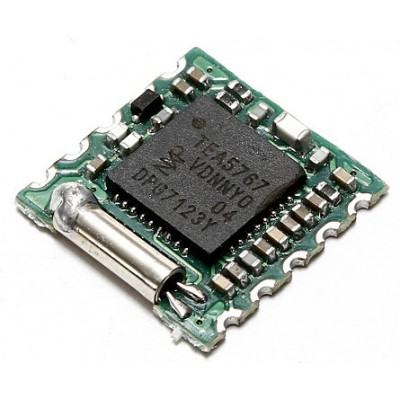

Based on the chip of the Philips TEA5767, this tiny module allows to realize, with the addition of very few external components, a stereo FM radio with reception frequency from 87.6 MHz to 108 MHz .. Used in MP3 players, MP4, mobile phones, etc.

3.3V @ 11mA
76-108MHz supported
100mV audio output
Stereo output….
Read more: FM Receiver Module
