CasioKeyBot, the Robotized Hand Plays an Old Casio Electronic Keyboard
I really like the crappy sound of those 80s toy keyboards. Unfortunately, I am a lousy live keyboarder and I only have so many hands. So I thought about adding MIDI capability to my good old Casio SA-21. The simplest way to do this is obviously building a robotized hand with 8 servo motors controlled by an Arduino microcontroller, which in turn receives its commands through the serial-over-USB interface sent by a tiny C application that connects to the ALSA sequencer world of my Linux live music setup.

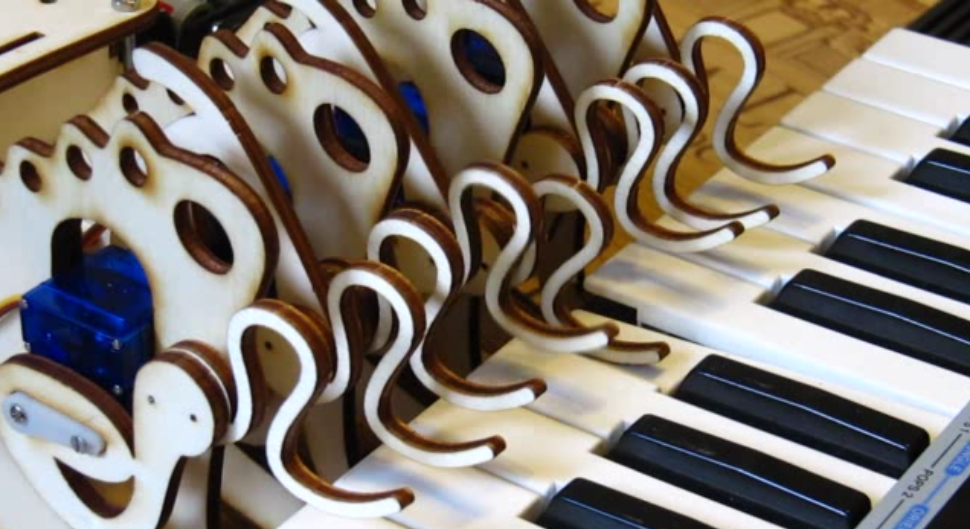

Fascinated by Electronic Keyboards, the maker Igor Angst has decided to substitute a robot in to push the synthesizer’s keys, using a laser-cut finger setup controlled by an Arduino Uno.
All you need to build CasioKeyBot is:
- Arduino Uno
- 5V/1A power supply with barrel connector
- Casio SA-21 keyboard or similar
- Micro servo motors (Such as SG90 9g)
- Power switch
- Power indicator LED
- 220 Ohms resistor
- 3mm plywood sheets 300x450mm (or anything that fits your laser cutter)
- USB cable
- small breadboard or prototyping board
- some wires
The MIDI sequence/notes to be played are supplied by a computer running Advanced Linux Sound Architecture (ALSA), and interpreted by a C program that translates it into USB serial signals that the Uno can use. It then actuates its wooden fingers, producing a pleasing tune along with apparently keyboard-provided accompaniment in the video below.
