Waveform generator

By Boris Landoni on February 4, 2020

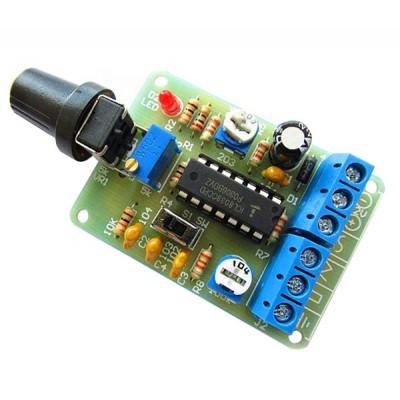

Waveform generator in kit based on ICL8038 chip. It is able to generate sine wave, triangular and square wave output signals. It has status LEDs, switch to select the frequency band, Duty cycle adjustment, distortion adjustment for sine wave, frequency adjustment, screw terminals for square, sinusoidal, triangular wave output and power supply. Power supply: 12 VDC, frequency range: from 50 Hz to 5 kHz.
