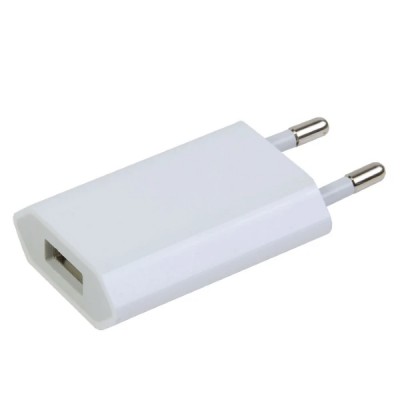

Switching power supply with USB output – 5V / 1A

By Boris Landoni on August 13, 2021

Ultra compact (68 x 35 x 14 mm) switching power supply with USB output, short circuit protected and characterized by low power consumption under no load. Designed for a wide range of devices such as cell phones, media players, GPS, etc …

Techical specifications

Power supply: 100-240 Vac, 50/60 Hz
Power: 7.5W
Output voltage: 5 Vdc – 1 A
Ripple: <0.15V
Output connector: USB fem
