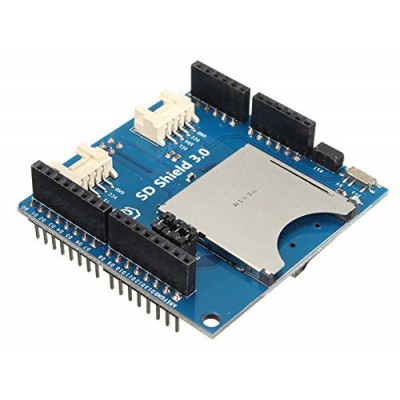

SD Card shield for Arduino

By Boris Landoni on January 7, 2019

Shield for Arduino equipped with SD Card slot and micro SD adapter. It has a communication interface (SPI, I²C, UART), 3.3V and 5V power switch, power status LED, reset button, jumper to set SPI pins (D11, D12 or D13), 4-pin connector for UART interface (RX, TX, VCC, GND) and 4-pin connector for I²C interface (SCL, SDA, VCC, GND). Supports FAT16 or FAT32 format, SD card and SDHC, micro SD and micro SDHC. Suitable for applications

….
Read more: SD Card shield for Arduino
