Raspberry Pi 400 Keyboard Computer Features 1.8 GHz BCM2711C0 Processor

By on November 2, 2020
Pin It

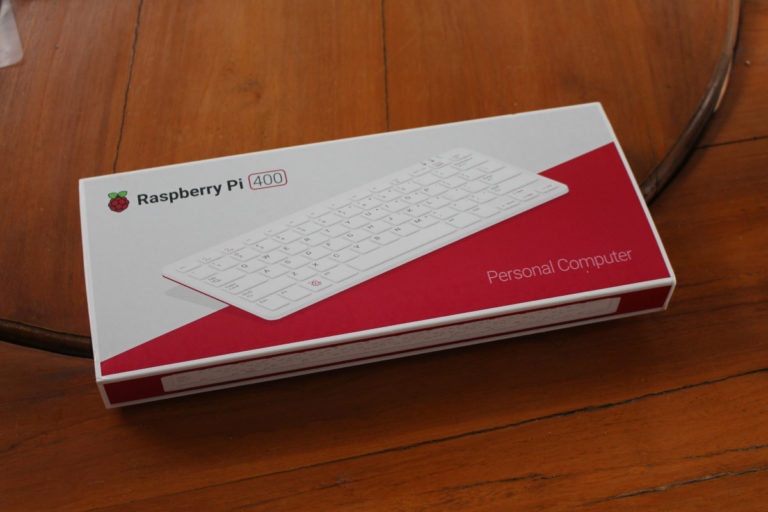

The Raspberry Pi Foundation has gotten us used to wait for a while between new hardware releases, but right after having announced Raspberry Pi CM4 and CM4 Lite a couple of weeks ago, the company has now introduced Raspberry Pi 400 keyboard computer with many of the same features as Raspberry Pi 4 single board computer, but as a fully integrated computer inside a 78-key keyboard, and equipped with a slightly faster Broadcom BCM2711C0 processor clocked at 1.8 GHz instead of 1.5 GHz.

Raspberry Pi 400 keyboard computer specifications:

  • SoC – Broadcom BCM2711C0 quad-core ARM Cortex-A72 processor @ 1.8GHz

  • System Memory – 4GB LPDDR4-3200 SDRAM

  • Storage – Push-push MicroSD card slot for OS (USB boot also works)

  • Video & audio output – 2x micro HDMI ports up to 1 x 4Kp60, or 2 x 4Kp30

  • Connectivity







    • Gigabit Ethernet RJ45
    • 2.4GHz and 5GHz 802.11.b/g/n/ac WiFi 5, Bluetooth 5.1 and BLE (Bluetooth Low Energy) with PCB antenna
  • USB – 2 x USB3.0 Port + 1 x USB2.0 Port

  • User Input – 78-key mini keyboard with US, UK, FR, DE, ES or IT Layout

  • Expansion – 40-pin GPIO horizontal header with

  • Misc- Power button for software on/off, Kensington lock hole, and a heatsink for heat dissipation

  • Power Supply – 5V/3.0A via USB type C connector with 27x GPIO, UART, I2C bus, SPI bus with two chip selects,  5V, 3.3V, and GND

  • Dimensions – 285 x 122 x 21mm
