PIR sensor wireless curtain effect for wireless alarm FR575

By Boris Landoni on September 24, 2019

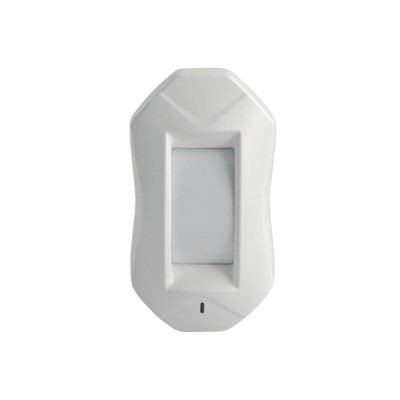

PIR sensor curtain effect for doors and windows. Designed to be used with the GSM / SMS / RFID wireless burglar alarm unit (FR575), it has a very narrow detection angle (15°) which allows you to discriminate the movements in the room and detect only those near doors and windows. When it detects motion, the internal 433 MHz transmitter sends a coded signal to the wireless control panel, triggering the alarm. It has a low battery signal

Go to Open-Electronics Store
