OpenStore: Venus GPS 65 ch with SMA Connector

By on October 10, 2017
Pin It

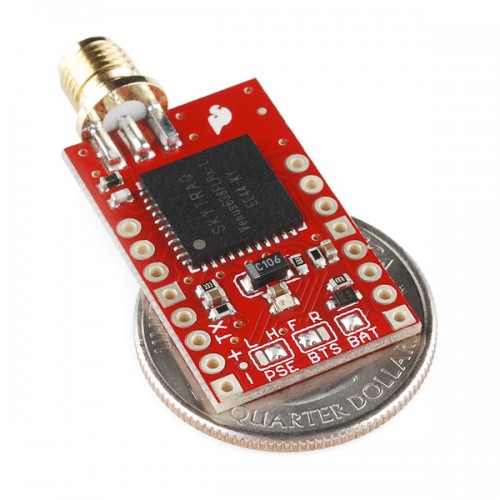

This is the latest version of the Venus GPS board; the smallest, most powerful, and most versatile GPS receiver.
It’s based on the new Venus638FLPx. The Venus638FLPx outputs standard NMEA-0183 or SkyTraq Binary sentences at a default rate of 9600bps (adjustable to 115200bps), with update rates up to 20Hz! The Venus638FLPx also allows for limited on-chip logging (check out the firmware below), as well as external logging using
The Venus638FLPx also allows for limited on-chip logging (according to the firmware), as well as external logging using a SPI flash memory chip (not included).
This board includes a SMA connector to attach an external antenna, headers for 3.3V serial data, NAV (lock) indication, Pulse-Per-Second output, and external Flash support. We’ve also provided solder jumpers to easily configure the power consumption, boot memory, and backup supply. This board requires a regulated 3.3V supply to operate; at full power the board uses up to 90mA, at reduced power it requires up to 60mA.
We’ve also provided solder jumpers to easily configure the power consumption, boot memory, and backup supply. This board requires a regulated 3.3V supply to operate; at full power the board uses up to 90mA, at reduced power it requires up to 60mA.
We’ve made it easy to connect an external battery or super capacitor to the board, to support very fast restarts after power is removed.

Technical features
  • Up to 20Hz update rate
  • -148dBm cold start sensitivity
  • -165dBm tracking sensitivity
  • 29 second: cold start TTFF
  • 3.5 second: TTFF with AGPS
  • 1 second: hot start
  • 2.5m accuracy
  • Multipath detection and suppression
  • Jamming detection and mitigation
  • SBAS (WAAS / EGNOS) support
  • 67mW full power navigation
  • Works directly with active or passive antenna
  • Internal flash for optional 75K point data logging
  • Supports external SPI flash memory data logging
  • Complete receiver in 10mm x 10mm x 1.3mm size
  • Contains LNA, SAW Filter, TCXO, RTC Xtal, LDO
  • Single 2.7-3.3V supply
  • Dimensions: 1.15 x 0.7 inches



PCBWAY

Visit the store
OpenStore
