Multifunction panel mini timer – 12 VDC

By Boris Landoni on March 26, 2019

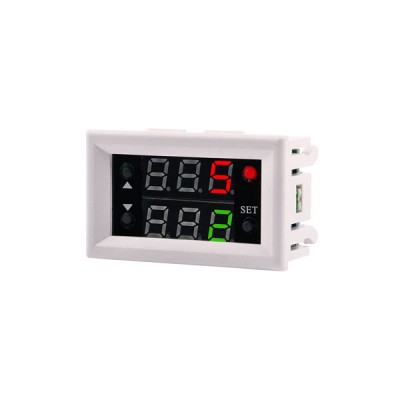

Multifunction panel mini timer with red LED display for one time (TIMER1) and green LED display for the other time (TIMER2), buttons for settings, output relay capable of switching maximum loads from 250 VAC / 10 A and 14 VDC / 20 A and status LEDs.

The time can be set from 0 to 999 seconds, from 0 to 999 minutes, from 0 to 999 hours. It is also possible to choose one of the following operating modes:

When switched on, th
