IKEA SMS lamp with GSM shield

By Boris Landoni on September 28, 2012

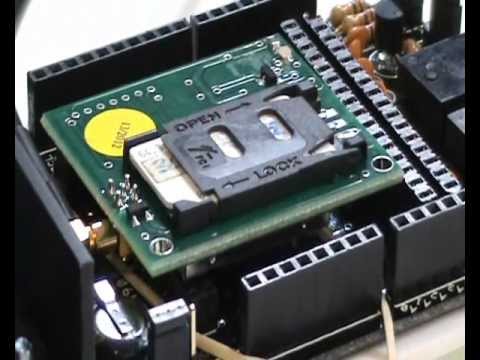

We create a lamp controlled by SMS using a GSM shield, a RGB shield and a Arduino UNO.
Due to the simplicity of these boards, simply plug one over the other and connect a strip led to have a lighting effect.
Then sending normal text messages from any phone, you can turn on and choose the color to set.

The scketch check the text of the received message, if the SMS contains a character, it follows on the corresponding color.
It ‘also provided a fader functions can be called with the character F

This is the list commands:
R to set RED
G to set GREEN
B to set BLUE
Y to set YELLOW
O to set ORANGE
P to set PURPLE
W to set WHITE
F to set the fader function

This is just an example of the possible applications of the GSM / GPRS shield.
You can for example control the home lighting with a simple text message, or receive an SMS in case of alarm.
In addition, the SIM900 has the capacity to also decode DTMF tones, so you can call this in the sim GSM shield and switch loads directly from the telephone keypad.

The complete library it contains many other functions through which you can make calls, connect to the Internet, send and receive SMS.

This is the simple firmware in Arduino.

//GSM Shield for Arduino
//www.open-electronics.org
//this code is based on the example of Arduino Labs

#include &quot;SIM900.h&quot;
#include &quot;sms.h&quot;
#include &quot;SoftwareSerial.h&quot;
#include &quot;sms.h&quot;
SMSGSM sms;
int red = 10;    // RED LED connected to PWM pin 3
int green = 5;    // GREEN LED connected to PWM pin 5
int blue = 6;    // BLUE LED connected to PWM pin 6
int r=50; int g=100; int b=150;
int rup; int gup; int bup;

boolean started=false;
char smsbuffer[160];
char n[20];
int fader=1;
int inc=10;

void setup()
{
  //Serial connection.
  Serial.begin(9600);
  Serial.println(&quot;GSM Shield testing.&quot;);
  //Start configuration of shield with baudrate.
  if (gsm.begin(2400)){
    Serial.println(&quot;\nstatus=READY&quot;);
    started=true;
  }
  else Serial.println(&quot;\nstatus=IDLE&quot;);
  if(started){
    delsms();
  }

};

void loop()
{
  int pos=0;
  //Serial.println(&quot;Loop&quot;);
  if(started){
    pos=sms.IsSMSPresent(SMS_ALL);
    if(pos){
      Serial.println(&quot;IsSMSPresent at pos &quot;);
      Serial.println(pos);
      sms.GetSMS(pos,n,smsbuffer,100);
        Serial.println(n);
        Serial.println(smsbuffer);
        if(!strcmp(smsbuffer,&quot;R&quot;)){
          Serial.println(&quot;RED&quot;);
          r=255;
          g=0;
          b=0;
        }
        if(!strcmp(smsbuffer,&quot;G&quot;)){
          Serial.println(&quot;GREEN&quot;);
          r=0;
          g=255;
          b=0;
        }
        if(!strcmp(smsbuffer,&quot;B&quot;)){
          Serial.println(&quot;BLUE&quot;);
          r=0;
          g=0;
          b=255;
        }
        if(!strcmp(smsbuffer,&quot;P&quot;)){
          Serial.println(&quot;PURPLE&quot;);
          r=255;
          g=0;
          b=255;
        }
        if(!strcmp(smsbuffer,&quot;Y&quot;)){
          Serial.println(&quot;YELLOW&quot;);
          r=255;
          g=255;
          b=0;
        }
        if(!strcmp(smsbuffer,&quot;O&quot;)){
          Serial.println(&quot;ORANGE&quot;);
          r=255;
          g=165;
          b=0;
        }
        if(!strcmp(smsbuffer,&quot;W&quot;)){
          Serial.println(&quot;WHITE&quot;);
          r=255;
          g=255;
          b=255;
        }
        if(!strcmp(smsbuffer,&quot;F&quot;)){
          Serial.println(&quot;FADER&quot;);
          fader=1;
          r=50; g=100; b=150;
        }
        else
        {
          fader=0;
        }
        rgb(r, g, b);
        delsms();

    }
    if(fader){
      funcfader();
    }

  }
};

void delsms(){
  Serial.println(&quot;delsms&quot;);
  for (int i=0; i&lt;10; i++){  //do it max 10 times
      int pos=sms.IsSMSPresent(SMS_ALL);
      if (pos!=0){
        Serial.print(&quot;\nFind SMS at the pos &quot;);
        Serial.println(pos);
        if (sms.DeleteSMS(pos)==1){
          Serial.print(&quot;\nDeleted SMS at the pos &quot;);
          Serial.println(pos);
        }
        else
        {
          Serial.print(&quot;\nCant del SMS at the pos &quot;);
          Serial.println(pos);
        }
      }
    }

}

void funcfader(){
    if (rup==1){r+=1;}
    else{r-=1;}
    if (r&gt;=255){rup=0;}
    if (r&lt;=0){rup=1;}

    if (gup==1){g+=1;}
    else{g-=1;}
    if (g&gt;=255){gup=0;}
    if (g&lt;=0){gup=1;}

    if (bup==1){b+=1;}
    else{b-=1;}
    if (b&gt;=255){bup=0;}
    if (b&lt;=0){bup=1;}
    rgb(r, g, b);
}

void rgb(int r, int g, int b)
{

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

//GSM Shield for Arduino

//www.open-electronics.org

//this code is based on the example of Arduino Labs

#include "SIM900.h"

#include "sms.h"

#include "SoftwareSerial.h"

#include "sms.h"

SMSGSM sms;

int red = 10; // RED LED connected to PWM pin 3

int green = 5; // GREEN LED connected to PWM pin 5

int blue = 6; // BLUE LED connected to PWM pin 6

int r=50; int g=100; int b=150;

int rup; int gup; int bup;

boolean started=false;

char smsbuffer[160];

char n[20];

int fader=1;

int inc=10;

void setup()

{

//Serial connection.

Serial.begin(9600);

Serial.println("GSM Shield testing.");

//Start configuration of shield with baudrate.

if (gsm.begin(2400)){

Serial.println("\nstatus=READY");

started=true;

}

else Serial.println("\nstatus=IDLE");

if(started){

delsms();

}

};

void loop()

{

int pos=0;

//Serial.println("Loop");

if(started){

pos=sms.IsSMSPresent(SMS_ALL);

if(pos){

Serial.println("IsSMSPresent at pos ");

Serial.println(pos);

sms.GetSMS(pos,n,smsbuffer,100);

Serial.println(n);

Serial.println(smsbuffer);

if(!strcmp(smsbuffer,"R")){

Serial.println("RED");

r=255;

g=0;

b=0;

}

if(!strcmp(smsbuffer,"G")){

Serial.println("GREEN");

r=0;

g=255;

b=0;

}

if(!strcmp(smsbuffer,"B")){

Serial.println("BLUE");

r=0;

g=0;

b=255;

}

if(!strcmp(smsbuffer,"P")){

Serial.println("PURPLE");

r=255;

g=0;

b=255;

}

if(!strcmp(smsbuffer,"Y")){

Serial.println("YELLOW");

r=255;

g=255;

b=0;

}

if(!strcmp(smsbuffer,"O")){

Serial.println("ORANGE");

r=255;

g=165;

b=0;

}

if(!strcmp(smsbuffer,"W")){

Serial.println("WHITE");

r=255;

g=255;

b=255;

}

if(!strcmp(smsbuffer,"F")){

Serial.println("FADER");

fader=1;

r=50; g=100; b=150;

}

else

{

fader=0;

}

rgb(r, g, b);

delsms();

}

if(fader){

funcfader();

}

};

void delsms(){

Serial.println("delsms");

for (int i=0; i<10; i++){ //do it max 10 times

int pos=sms.IsSMSPresent(SMS_ALL);

if (pos!=0){

Serial.print("\nFind SMS at the pos ");

Serial.println(pos);

if (sms.DeleteSMS(pos)==1){

Serial.print("\nDeleted SMS at the pos ");

Serial.println(pos);

}

else

{

Serial.print("\nCant del SMS at the pos ");

Serial.println(pos);

}

void funcfader(){

if (rup==1){r+=1;}

else{r-=1;}

if (r>=255){rup=0;}

if (r<=0){rup=1;}

if (gup==1){g+=1;}

else{g-=1;}

if (g>=255){gup=0;}

if (g<=0){gup=1;}

if (bup==1){b+=1;}

else{b-=1;}

if (b>=255){bup=0;}

if (b<=0){bup=1;}

rgb(r, g, b);

}

void rgb(int r, int g, int b)

{

  if (r&gt;255) r=255;
  if (g&gt;255) g=255;
  if (b&gt;255) b=255;
  if (r&lt;0) r=0;
  if (g&lt;0) g=0;
  if (b&lt;0) b=0;

  analogWrite(red, r);
  analogWrite(green, g);
  analogWrite(blue, b);
}

if (r>255) r=255;

if (g>255) g=255;

if (b>255) b=255;

if (r<0) r=0;

if (g<0) g=0;

if (b<0) b=0;

analogWrite(red, r);

analogWrite(green, g);

analogWrite(blue, b);

}
