Hexiwear – a wearable development kit for the IoT era

By on February 24, 2016
Pin It

PCBWAY

Create your own smartwatch, remote sensor tag, or sophisticated home controller with this small, sleek, BLE-enabled, low power dev kit.

The six sides represent the six reasons why Hexiwear is so great:

  • Compact wearable form factor
  • Low power
  • Expandability
  • Connectivity
  • Availability (open source)
  • Community

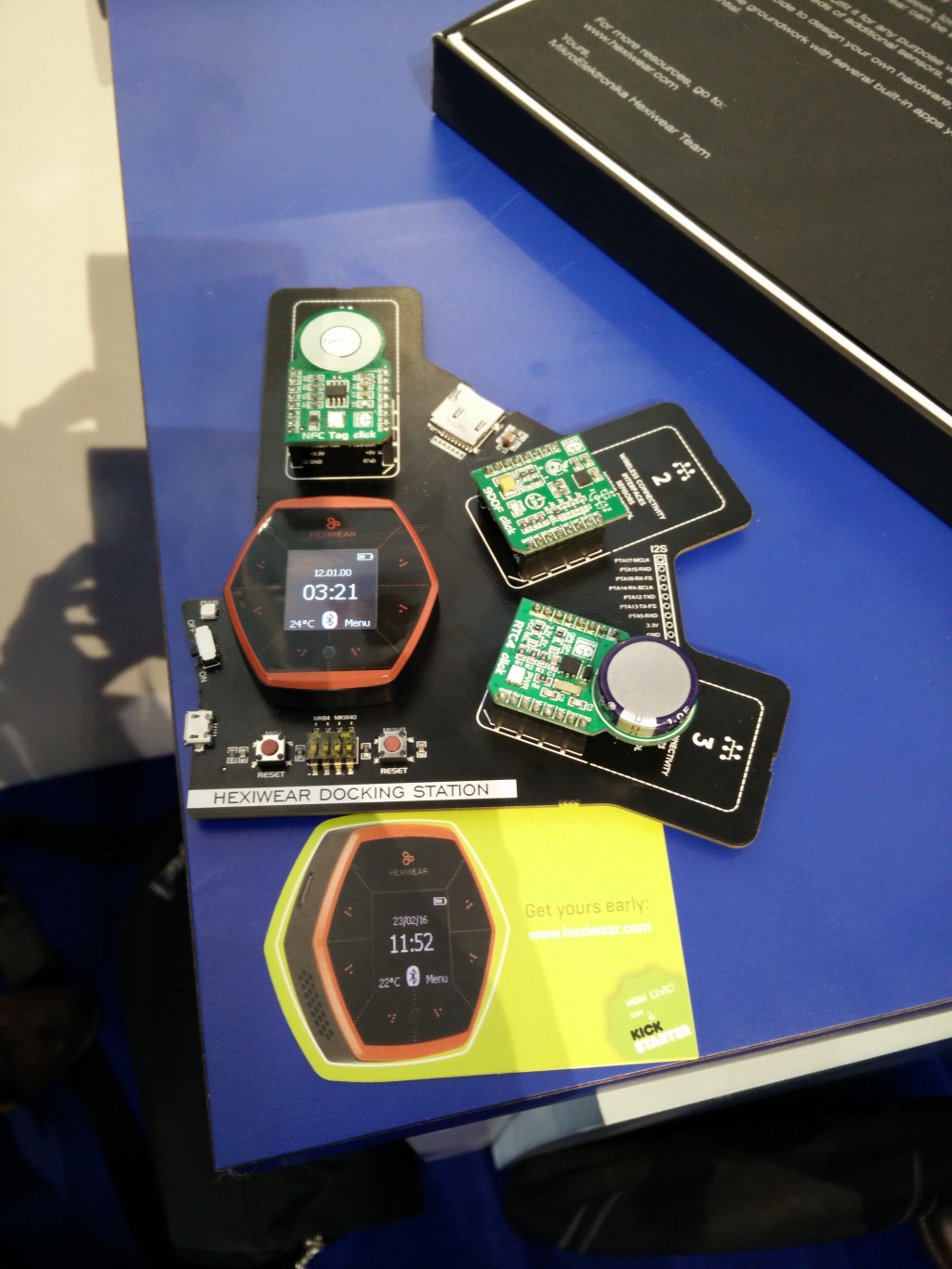

IMG_20160223_142254

Hexiwear is a wearable development kit for the Internet of Things era. A small and sleek, low-power device packed with sensors to quantify yourself and the world around you.

PCBWAY

HARDWARE SPECS

  • MCU: NXP Kinetis K64 MCU (ARM® Cortex®-M4, 120 MHz, 1M Flash, 256K SRAM)
  • BLE: NXP Kinetis KW4x (ARM® Cortex®-M0+, Bluetooth Low Energy & 802.15.4 Wireless MCU)
  • 3D Accelerometer and 3D Magnetometer: NXP FXOS8700CQ
  • 3-Axis Digital Gyroscope: NXP FXAS21002
  • Absolute Digital Pressure sensor: NXP MPL3115A2R1
  • 600 mA Single-cell Li-Ion/Li-Polymer Battery Charger: NXP MC34671
  • Light-to-digital converter: TAOS TSL2561
  • Digital humidity and temperature sensor: MEAS HTU21D
  • Heart-rate sensor: Maxim’s MAX30101
  • 1.1” full color OLED display
  • Haptic feedback engine
  • 190 mAh 2C Li-Po battery
  • Capacitive touch interface
  • RGB LED
  • 8 MB of additional Flash memory

It is a real do-anything device. Digitalized self, pedometer, weather station, movement sensor,  motion capture.

Right now on Kickstarter, 38 days to go!
