HEX3653 FM 76-108 MHz Radio Receiver

By Boris Landoni on August 1, 2019

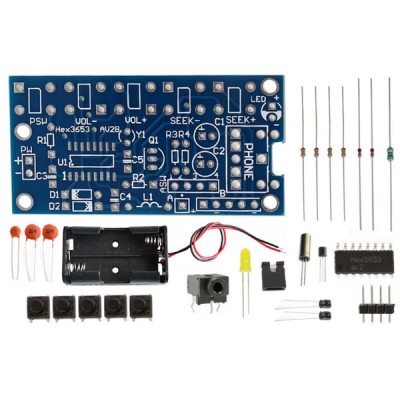

The module is based on a HEX3653 IC which is essentially an FM radio chip that can receive modulated FM signals with a frequency range of 76 to 108MHz. It uses very few external components such as: control buttons, resistors, capacitors, transistors and LEDs. The buttons allow the volume adjustment (VOL- and VOL +), the station search (SEEK- and SEEK +), switch the device on or to standby (PWS). The tuning ranges between 76 and 108 MHz in
