Heated plate in aluminum for 3D printer

By Boris Landoni on May 20, 2019

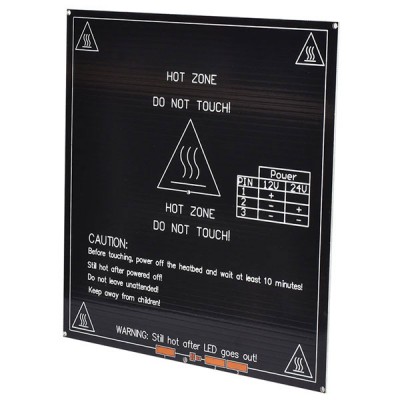

Made of aluminum with a thickness of 3 mm this heated plate is able to reach a temperature above 80 ° C in about 10 minutes. It allows to print directly on the aluminum side without the need for glass panels. It is suitable for printing with ABS and not only. It can be powered at 12 VDC or 24 VDC with a consumption of about 10 A. Dimensions (mm): 213x213x3, weight: 367 grams.

Power Supply:
– 12 volt: connect the positive

Go to Open-Electronics Store

OpenStore
