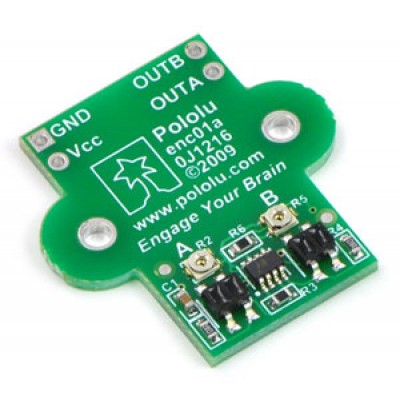

Encoder for Pololu Wheel 42x19mm

By Boris Landoni on September 26, 2019

This quadrature encoder works with our micro metal gearmotors, 42×19mm wheel, and extended bracket to measure the rotation speed and direction of the wheel. With twelve teeth on the wheel, the system provides a resolution of 48 counts per revolution, which corresponds to a linear resolution of just under 3 mm or 1/8″

Technical specifications

Power supply: from 4.5 V to 5.5 V (the

Go to Open-Electronics Store
