Dual display 7 segment 2,3

By Boris Landoni on September 20, 2019

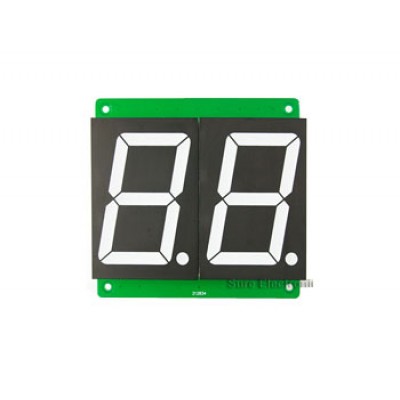

7-segment 2-digit display with common anode and red LED with high contrast, brightness and wide viewing angle. A decimal point and 5.8 cm high digits. It is controlled using the appropriate driver card code 7719-DRIVERLED, but can also be easily interfaced to a microcontroller. Power supply: 12 Vdc – 3.25 A, current segment: 18 mA, maximum clock frequency: 1 MHz, dimensions (mm): 96.70 (length) x 91.60 (width) x 24 (height). Supplied with

Go to Open-Electronics Store
