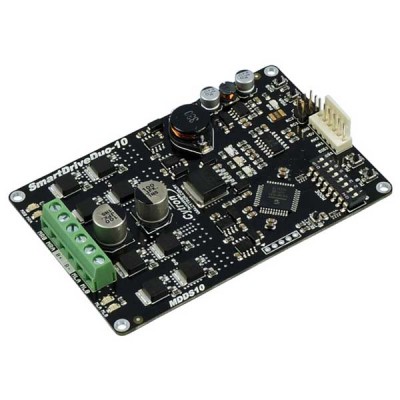

Driver for 2 DC motors 10 A – 4 control modes

By Boris Landoni on January 19, 2019

Motor driver able to manage 2 DC motors with a supply voltage between 7 Vdc and 35 Vdc and a max of 10 A for each channel.
It can be controlled in RC mode (modeling receiver), Analog, PWM from a microcontroller (Arduino or other) and UART.
It has a terminal block for the connection of the motors and for the power supply, two test buttons for each channel, inputs for external contr
