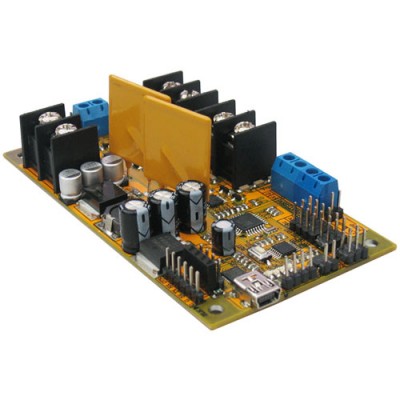

DAGU T REX Driver board

By Boris Landoni on December 6, 2019

Based on the ATmega328P, the DAGU’s T’REX driver board is a board capable of controlling the speed and direction of rotation of two DC motors with a continuous 9 A current (40 A peak) and 4 RC servos. Equipped with a 3-axis accelerometer and self-resetting fuses (PTC), it can be controlled in I2C, RC mode and via the DAGU Bluetooth module (not included) which allows the driver to be managed with a smartphone. It also has a 5V 2A po

Go to Open-Electronics Store

OpenStore
