Breakout Board with RFM69 (434 MHz)

By Boris Landoni on October 4, 2019

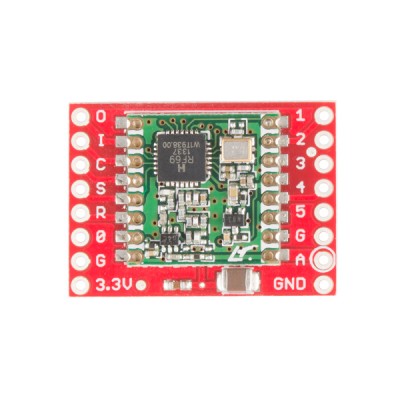

Breakout board based on the 434 MHz RFM69HCW transceiver module. It uses the SPI (Serial Peripheral Interface) interface to communicate with Arduino or another host microcontroller, operates in the ISM radio band (Industry, Science and Medicine) which does not require a license. It is able of transmitting up to 100 mW at 300 kbps, covering distances up to 500 meters or more. It supports up to 256 networks with 255 nodes per network, has AE

Go to Open-Electronics Store
