An experimental HF 6-band SSB transceiver

By Emanuele Signoretta on August 10, 2020

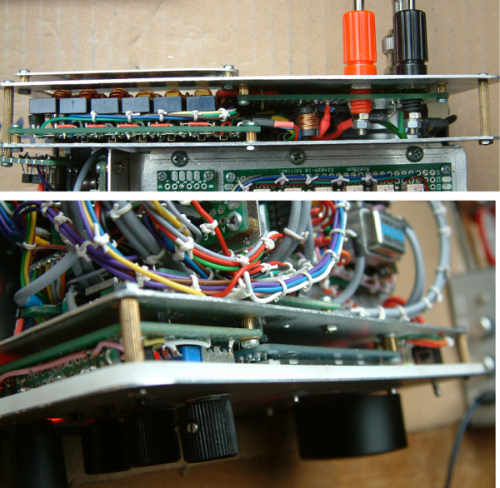

An SSB radio for the HF bands will be presented. Featuring 12 to 20 Watts of output power (depending on DC supply), full DDS frequency generation, covering 6 major frequency bands (1.8, 3.5, 7, 14, 21 and 28 MHz) within the short wave amateur radio spectrum. The rig also features colored LCD and front panel backlight.

HF newsline open hardware open source transceiver

About Emanuele Signoretta

Studying electronics and communication engineering at Politecnico di Torino. Electronics, IT and Open Source enthusiast.
