Amplified microwave motion sensor

By Boris Landoni on July 16, 2021

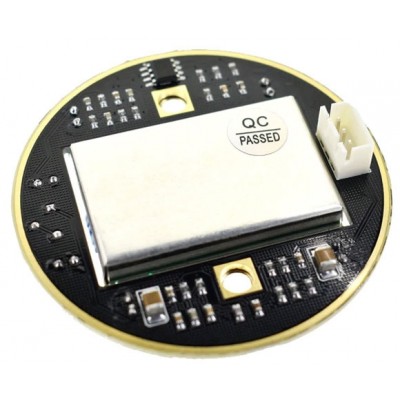

Compact module that integrates the microwave motion sensor based on the Doppler effect, a signal amplification section (not present in the sensor only), two status LEDs and a trimmer for adjusting the detection distance from 2 to 16 meters. It consists of a transmitting and a receiving section. As soon as the sensor is powered it sends a pulse train with a frequency of 10.525 GHz (low power), when they encounter an object, the pulse train
