A minimal 3D-printed scale

By Boris Landoni on September 18, 2023

A load cell is a sensor designed to measure the weight of an object.

Essentially, it is an aluminum bar containing 4 resistive strain gauges that are measured through a Wheatstone bridge to detect the weight of the object.

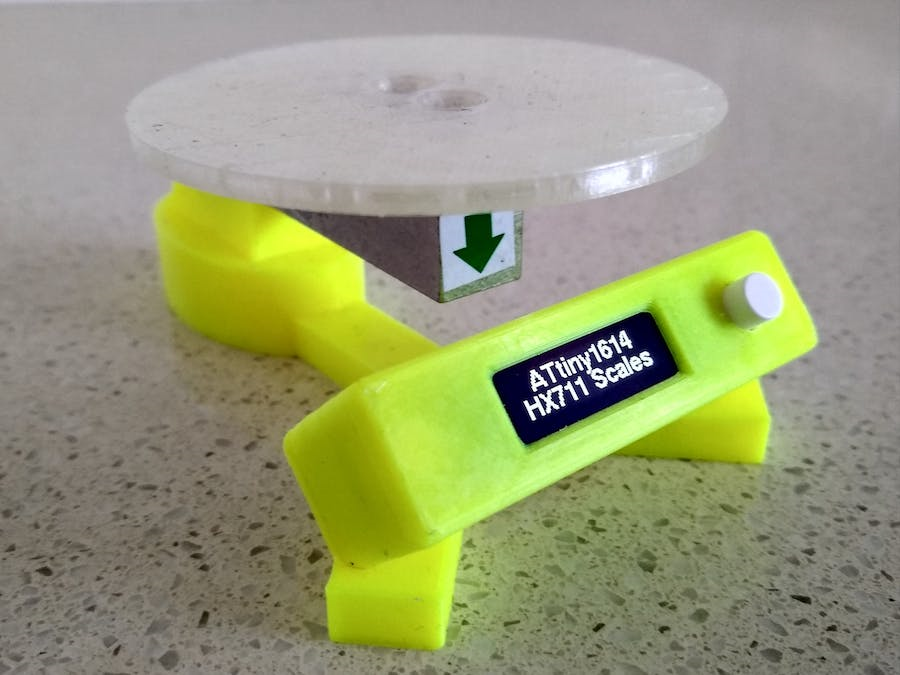

In this project, using a small Microchip ATtiny1614 and a 5kg load cell, a 3D-printed scale was created with a truly minimal and attractive design.
