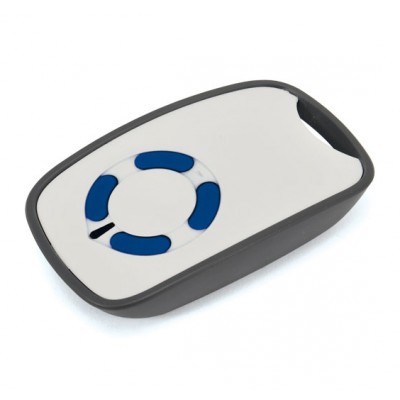

4 Ch Transmitter DIP-SWITCH FIXED CODE

By Boris Landoni on January 12, 2019

4-channel RF trasmitters with 433 MHz operating frequency. Ideal for applications in the field of alarms and coded commands where high efficiency and low spurious emission are required. In compliance with the European Standards EN 300 200 and ETS 300 683 (Electromagnetic Compatibility). Encoder: 86409 – 7 mA @ 12V, 1mW E.R.P. Dimensions (mm): 67x15x40.

DIP-SWITCH FIXED CODE: 4-channel transmitter Frequency 433.95 Mhz AM. Battery 12
