Let’s create a small level with a matrix display

By Boris Landoni on September 14, 2023

The low cost of sensors and components allows us to build small gadgets and tools that were unthinkable just a few years ago.

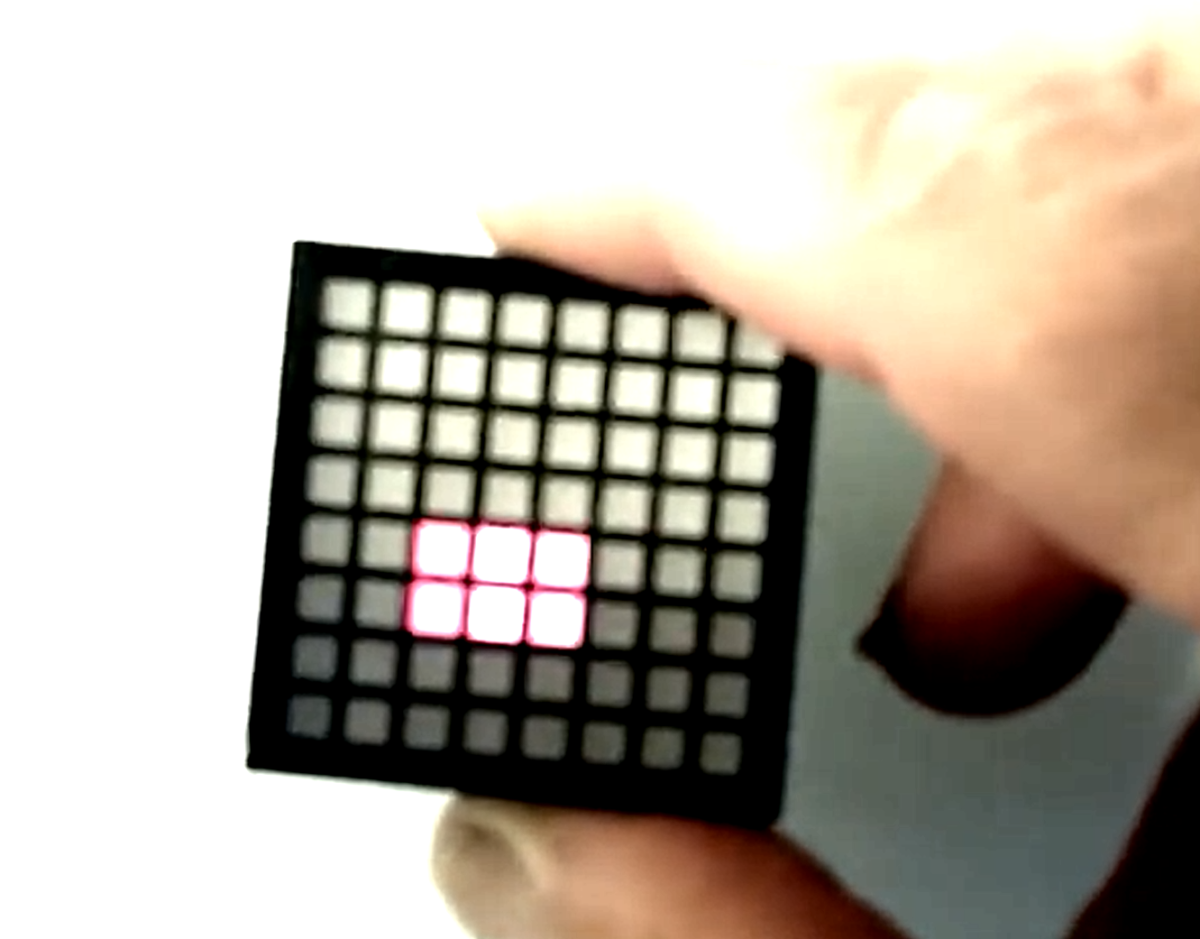

In this project, a “bubble” level has been created, which is a tool used to determine if a surface is perfectly level.

The level was constructed using an accelerometer and an AVR128DB32 microcontroller from Microchip.
