ICWatch: DIY Your Unique Smart Wearable Watch Based on Arduino

By on June 2, 2015

Web site:

http://www.icstation.com/icwatch.html

Project Summary:

ICWatch is a DIY Watch which combined the sensor modules or the wireless equipment with the watch.

Full Project:

You can use it as a kind of DIY watch and development board which can be connect to extended equipments. Whats more, customers can use it to DIY a unique smart watch easily with your own imagination!

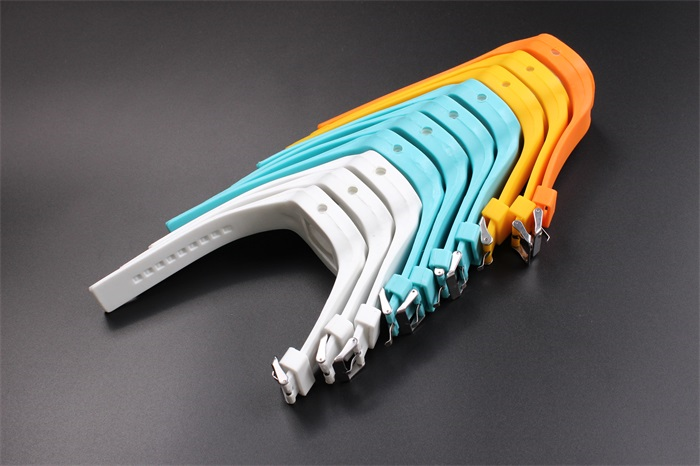

The wristwatch is made of Silicone material which does no harm to skin, more comfortable. And different color of the wristwatch for choosing.

wristwatch

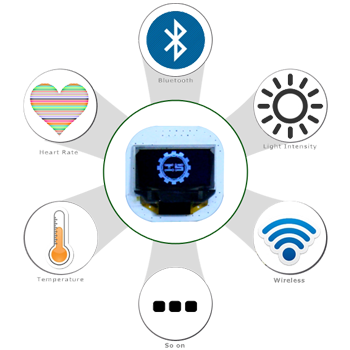

It’s with Multi interfaces (IIC、SPI、ADC2、ADC3) to connect more modules.

interface

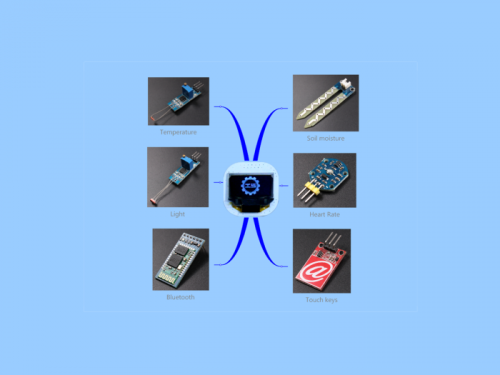

It has the SPIdownload interface which can connect to the downloader to download program. You even can  remold it to develop your own products.

interface2

Bill of Materials:

It uses the IIC interface between the PCB and the 0.96〞OLED.

1

5

3

Software & Code Snippets:

Code for reference:
http://www.icstation.com/images/ICS/describe/5224/ICWatch_SourceCode.zip

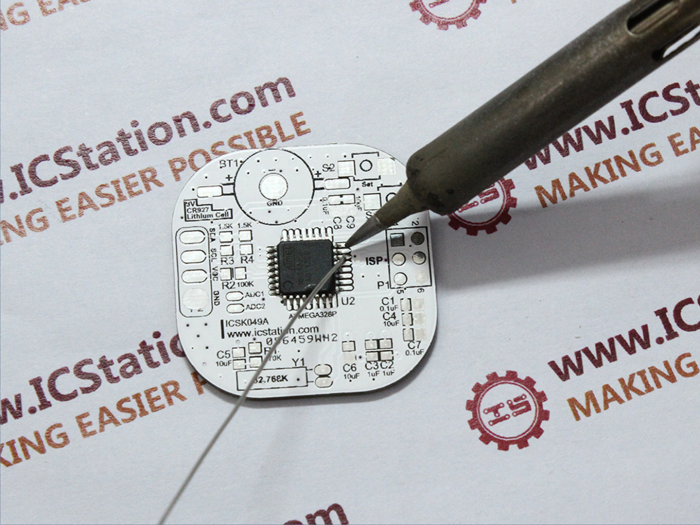

PCB:

PCB
