Cherry Pi Split Mechanical Keyboard

By Emanuele Signoretta on August 19, 2020

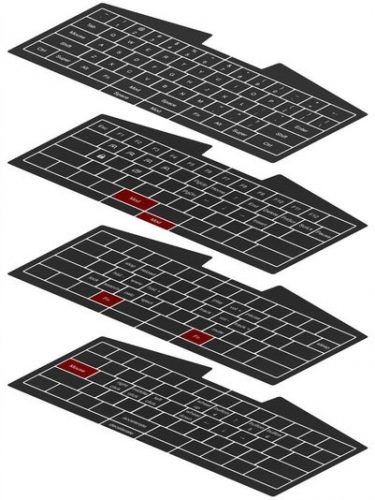

This is my the first mechanical keyboard project. And this will be for daily usage. Although the possibilities are almost endless, I limit myself to the basic functionality: An ergonomic keyboard with mouse functions.
While searching for parts I came across a new type of switch. A low-profile version of the Cherry MX Red. This makes it possible to make a thin mechanical keyboard. And I tried to keep this keyboard as thin as possible.

More info
