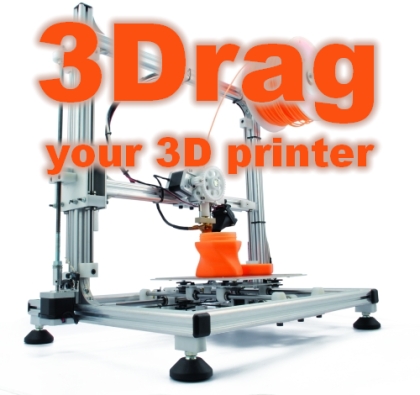

3Drag: the Open Electronics way to RepRap

By on April 3, 2013
Pin It

NEWS! Access the schematic of the printer here on the Rep Rap Wiki

Few months ago, after long months of testing, assembling and disassembling, print trials,and countless sleepless nights we finally decided to give birth our interpretation of the RepRap project.

3D Printer4

First steps

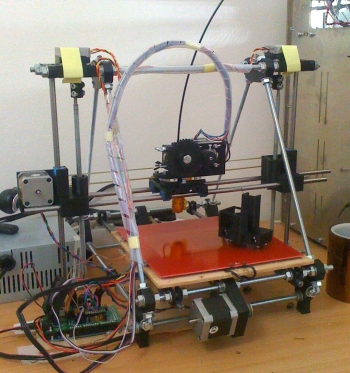

Assembled-prusa-mendelWhen we picked up the first RepRap kit, an elaboration of a Mendel, we spent the first couple of days to navigate between videos, screws, threaded rods and bolts: it wasn’t difficult, but surely the assembly was not so obvious and linear.

While the Prusa Mendel, the reference model and most “popular” RepRap version, can count on a myriad of mechanical parts, accessories and modifications that can be used from scratch, other RepRaps – with variations and changes in the structure – always require an assessment of the applicability of this or that changes you find online.

In light of our experience, we started planning our version of Mendel with three simple goals: ease of installation, Prusa Mendel comparable performance, 100% compatibility with RepRap electronics, firmware and software.


After two months, the light

3D Printer1

Pursuing simplicity of assembly led us to abandon molded plastic parts and M8 threaded rods and switch to aluminum profiles with shapes designed with fixing parts in mind.

In exchange for this very stable structure that you can assemble with simple sequences, our printer is not “compatible” with the world of RepRap mechanical tweaks. Each part is designed to be light where needed, such as with the plate drive system, and rigid to suppress vibrations and unwanted resonances.

Compared to a Mendel, our printer uses the X/Y the plate and Z for the dolly. This allowed us to simplify the extrusion system that no longer have to move on a horizontal axis: is simply attached to the structure that moves along the Z axis.

The printing plate support, then, is designed to accommodate a “base” of epoxy glass that combines good adhesion with the PLA, dimensional stability and it’s quite cheap. The surface of the epoxy glass base must be treated with fine sandpaper to expose the fiberglass. From our trials you get a smooth matte finish along with an excellent grip, even with pieces of a certain size. Compared with many other solutions we tested during experimentation, this is proving to be the most interesting solution with PLA prints. The dimensions of the support, however, are suitable for mounting of a Prusa floor heating standard solution (about 21 x 21 cm) on which you can set a printing plate provided that this is not too heavy. One of the first prints made ​​with our printer, it is worth to mention, is the half Eiffel Tower that was carried out at approximately 85 mm per second with a vertical height of about 20 centimeters. The result has left us amazed at first, because from an initial setting of a 60(120) mm/sec in printing(moving), we realized we’d left a speed increase of 140% on Repetier-Host. Nevertheless, the entire structure was almost perfect, with fine detail and precision in elements positioning. The image of the molded part is still more than a thousand words.


Finally kit are available.

3D Printer2

With the results achieved, and after few more months of refinements, we can finally release our mechanical interpretation of a RepRap we think of ourselves not exempt from offering everything in a practical and complete kits.

As said, electronics are fully compatible with the firmware and software from RepRap world. This will allow you to upgrade your printer with the new firmware and software solutions that gradually people will be able to create to make 3D printing easier and more intuitive.

The Marlin firmware is provided configured to reflect: the mechanical characteristics of the belts, the position and the direction of rotation of the motors and the connection type of the of Home (0,0,0) positions detection microswitches. Using a 0022 or 0023 Arduino IDE you can reprogram the board with all the simplicity of a single click of the mouse.

Marlin, moreover, can be reconfigured in a simple manner by intervening in the source file “Configuration.h” which contains all the functional parameters and mechanics characteristics. To make the printing and adjustment simpler and more repeatable we have combined the microswitch a series of screws which allow fine adjustment of each zero position. This is not an automatic adjustment, but once you have adjusted the screws in the correct way, you will have a steady and reliable positioning.

About Boris Landoni

Boris Landoni is the technical manager of Open-Electronics.org. Skilled in the GSM field, embraces the Open Source philosophy and its projects are available to the community.


  1. Oscar Aceña

    April 5, 2013 at 10:02 AM

    And, if this is open source, where is the “source” (schematics and BOM)?

    • BorisLandoni

      April 5, 2013 at 4:25 PM

      I have to publish a lot of other post, with schematics, connections and also BOM.
      And I’ll publish all materials on reprap.org site
      you must have a little patience

    • Simone Cicero

      September 4, 2013 at 10:55 PM

      Here’s it! > reprap.org/wiki/3drag

      • alex

        September 30, 2013 at 2:19 PM

        The dxf files from reprap.org/wiki/3drag are 2D drawings!
        Of course, with a little imagination the 3D objects can be “recreated”, but I don’t understand why you put only 2d drawings…

    • alex

      September 30, 2013 at 2:19 PM

      The dxf files from reprap.org/wiki/3drag are 2D drawings!
      Of course, with a little imagination the 3D objects can be “recreated”, but I don’t understand why you put only 2d drawings…

      Sorry Oscar, “you” means mr. Landoni, of course!

      • BorisLandoni

        September 30, 2013 at 4:41 PM

        The file are in 2D because you have to use a CNC. The first version of 3Drag uses Delrin parts. Now the new version uses plastic parts and includes the heated plate.

  2. Alex Lee

    December 24, 2013 at 1:45 PM

    Any ideas of aluminium profile model size etc?

  3. Juan Felipe Luna

    June 17, 2014 at 12:04 PM

    Hello I assembly a V.1.2 from futura elettronica, I have been struggling with the extruder calibration. I have tried the method of measuring the difference between the real extrusion and a 100 mm extrusion from the Repetier, then by rule of three calculate the amount of steeps for compensate that difference. however seems it’s not working, have any idea ?

    • Boris Landoni

      July 4, 2014 at 12:50 PM

      Hi, why are you modifing the default configuration?
      The 3Drag is preconfigured.
