Oscilloscope + Accessories for Car Diagnosis

By on June 19, 2018
Pin It

A sturdy aluminum case containing a four-channel oscilloscope (with 70 MHz bandwidth) and many accessories to perform over 80 types of measurements for car diagnostics. USB 2.0 interface for PC, the power supply is taken from the USB port of the PC to which it is connected allowing a quick and easy use; Supports tablet PCs; Supports WIN10 / WIN8 / WIN7 etc. Free software updated constantly; supports USBXI, easy to use. Oscilloscope with 4 isolated channels, real-time sampling rate 1 GSa / s, input sensitivity 2 mV-10V / DIV, 70 MHz bandwidth, easy to carry. Dynamic cursor tracking, waveform recording and playback function.

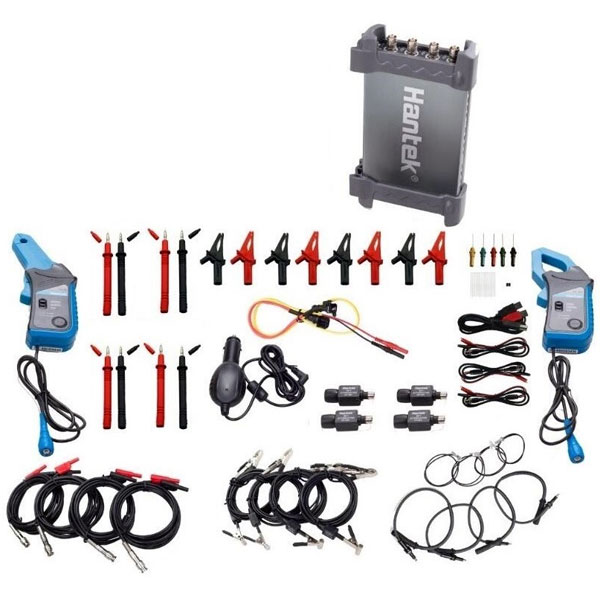

The package includes: 1 robust aluminum case, 1 four-channel oscilloscope, 4 20: 1 attenuators, 1 65 A current clamp, 1 650 A current clamp, 1 USB cable, 4 extension cables for Coil-On-Plug ignition systems (with ground cable), 4 pickups for secondary ignition circuit, 4 red and black BNC to Banana adapter cables, 4 pairs of red and black tips, 2 cables with BNC and red and black crocodile, 4 pairs of red and black pliers for battery, 1 adapter from BNC to red and black bushing, 1 cable 2 Pin Sensor Break Out Leads, 1 Set of 5 Probes with needle point + spare needles, 1 power supply with cigarette lighter socket (input 12-24 Vdc – output 12 Vdc 1.5 A), 1 mini CD containing the English manual and the software.

Software screens



Technical features



  • Oscilloscope
    – 4 isolated channels, real-time sampling rate of 1 GSa / s, high input sensitivity of 2 mV-10V / DIV and wide input range, 70 MHz bandwidth
    – suitable for laptops and desktop PCs. Supports WIN10 / WIN8 / WIN7 etc.
    – USB 2.0 interface for PC, power taken from the USB port of the PC to which it is connected allowing a quick and easy use
    – 20 automatic measurements. PASS / FAIL control function. Trigger function, dynamic cursor tracking, waveform recording and playback function.
    – anodized aluminum case with excellent resistance to heat and abrasion
    – waveform data can be exported to EXCEL, BMP, JPG
    – FFT spectrum analyzer
    – average wave format, brightness control, reverse, add, subtract, multiply, divide, X-Y display
    – possibility to connect multiple oscilloscopes and easily expand the number of channels



  • Automotive measurements
    – equipped with standard equipment for over 80 types of automotive measurements
    – First Diagnosis: Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition
    – injection: primary and secondary
    – sensor: air flow meter, camshaft, crankshaft, distributor, lambda sensor, throttle position
    – Bus diagnostics: examines CAN bus data, CAN bus signal integrity, long-term acquisition of CAN bus LH, LIN bus
    – Suitable for engines: Petrol / Diesel
    – Start-up and charging circuits
    – available a DLL library and development examples for Labview \ VB \ VC \ QT

Technical specifications



Input

  • Max. Sampling rate (in real time): 1 GSa / s
  • Channels: 4
  • Bandwidth: 70 MHz
  • Memory depth: 64K
  • Time Base:
  •     – precision: ± 50 ppm
  •     – range: 2 ns / div-1000 s / div (1-2-4 sequences)
  • Input sensitivity: 2 mV / div ~ 10 V / div
  • Input impedance: 1 MΩ – 25 pF
  • Vertical resolution: 8 Bit
  • Vertical displacement range:
  •     2mV ~ 10V / div @ x1 probe; 20mV ~ 100V / div @ x10 probeï¼>
  •     200mV ~ 1000V / div @ x100 probe; 2V ~ 10000V / div @ x1000 probe
  • Accuracy DC Gain: ± 3%
  • Trigger:
  •     – Type: Edge, Pulse, Video, Alternative
  •     – Source: CH1, CH2, CH3, CH4
  • Signal waveform process: +, -, x, ÷, FFT, Invert
  • Measurement sliders: Cross, Trace, Horizontal, Vertical
  • Measurements: Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

Various

  • Interface: USB 2.0
  • Power supply: directly via the USB port of the PC
  • Dimensions (mm):
  •     – oscilloscope: 270x122x37
  •     – case: 540x335x150
  • Weight:
  •     oscilloscope: 457 grams
  •     case complete with everything: 7.5 kg
