OpenStore: PCB Etching System with Agitator and Heater

By on February 5, 2018
Pin It

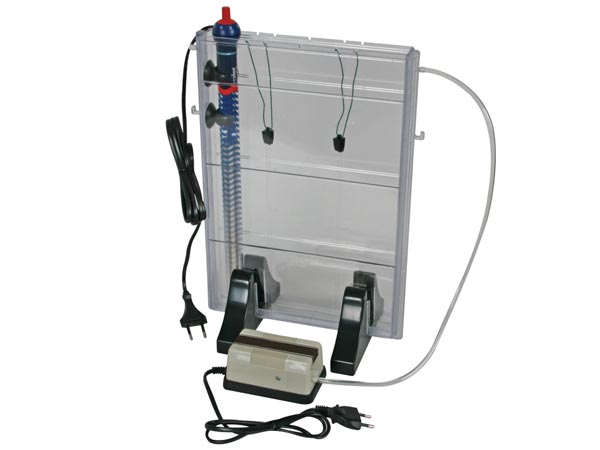

This PCB Etching Kit System is easy to use and easy to assembly.

The printed circuit board etching tank features graduated markings to assist in setting appropriate etchant depth. Normal usage requires a minimum of 2 liters of etching solution.
The system includes some handy wire clips used to hang your PCB(s) in the tank.
This feature makes it easy to lift the board out for an easy quick check of the boards progress.
The tank is translucent, board progress can be viewed by shining a light into the tank during the etching process.

PCBWAY



  • Acrylonitrile styrene (AS) plastic
  • Plug in 300W quartz heater
  • 220V agitating air pump
  • Wire circuit board holders
  • Graduated markings on molded tank to assist with pouring the etching solution
  • Dimensions:
    • external: 36 x 28 x 4 cm
    • internal: 35 x 23 x 3 cm
  • Tank capacity: 2.5 L
    • maximum fill: 2.25 L





ACID FOR ETCHING

In our store you can find also the acid for etching in powder (0.6Kg or 1Kg)

PCBWAY





Discover all our products to make your homemade PCB.
