Multimeter glasses with Bluetooth

By Marco Ventimiglia on September 15, 2021

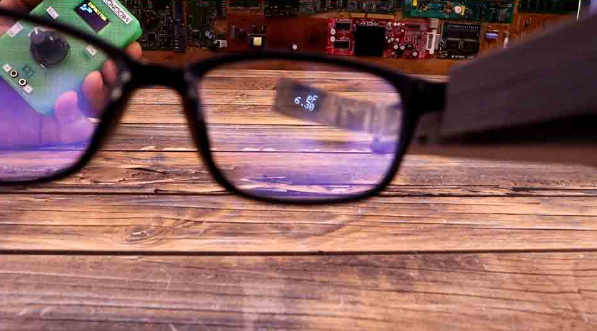

With this device you will be able to read the measurements made by a DIY multimeter directly on your glasses. No cables will be present as the multimeter will send the read data through the Bluetooth connection.

For reasons of compactness a PCB has been designed but it is possible to do it directly using the devices that will be listed below: the microcontroller is an Atmega328p present on the Arduino Nano, there is a Bluetooth module HC06 and an OLED display that projects data through a mirror system.
