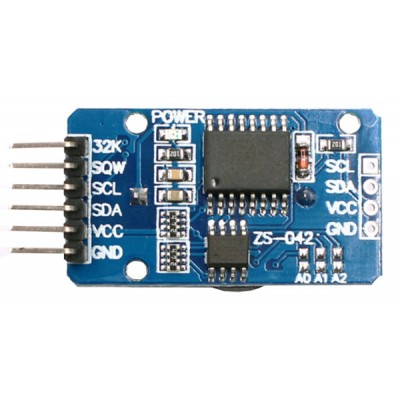

Breakout with DS3231 & EEPROM

By Boris Landoni on October 4, 2019

RTC module (Real Time Clock) based on chip DS3231. It has a 32Kb AT24C32 EEPROM memory to store user data, I2C interface, temperature compensated crystal oscillator (TCXO), 32.768 kHz square wave output pin, 3.3 to 5.5 volt power supply . The RTC allows you to count the seconds, minutes, hours, day, date, month and year with correction for leap years up to 2100. It can operate in 12 or 24 hour modes, with indication of the hours before the
