Wireless Image Transfer with Circuit Playground Bluefruit and E-Ink Gizmo

By Emanuele Signoretta on April 10, 2020

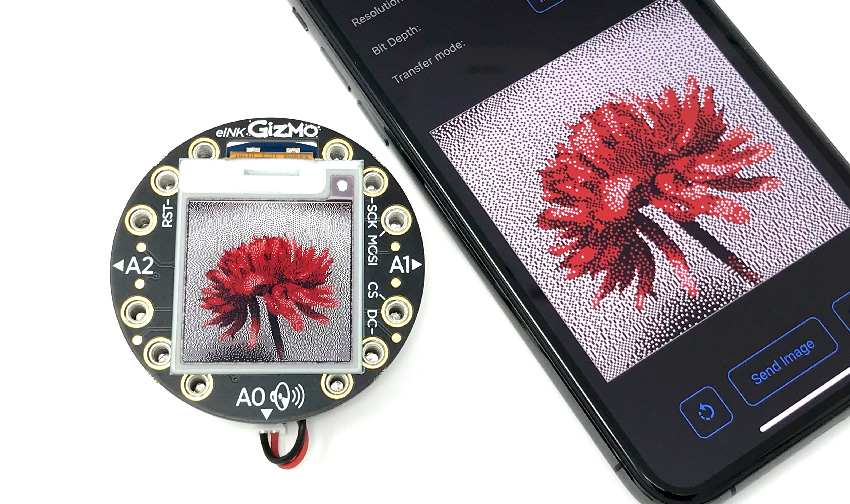

The Tri-Color E-Ink Gizmo gives Circuit Playground Bluefruit the ability to display images on a bold black, white, & red e-ink screen. And since it’s e-ink, the image can still be seen even after power has been turned off. Even better – you can now display images on E-Ink Gizmo by sending them wirelessly from your phone or tablet using the Bluefruit LE Connect app.

This guide shows you how to:

Assemble your E-Ink Gizmo & Circuit Playground Bluefruit
Install the Bluefruit LE Connect app
Transfer images wirelessly to your E-Ink Gizmo & Circuit Playground Bluefruit

More info
