Self-learning 433.92 MHz single channel receiver – To be Welded

By Boris Landoni on September 18, 2019

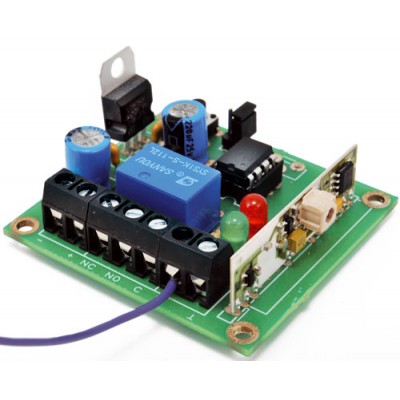

Based on the PIC12F683-I / P microcontroller (appropriately programmed) and the 433.92 MHz hybrid receiver AC-RX2, this single-channel self-learning receiver is able to decode the signal from the MM53200, UM3750, UM86409 encoded radio transmitters. or Holtek HT-12. The output relay, provided with status LEDs, can operate both in impulsive mode and in bistable mode and is suitable for loads up to 3 A. Up to 10 codes can be stored. Guarantee

Go to Open-Electronics Store
