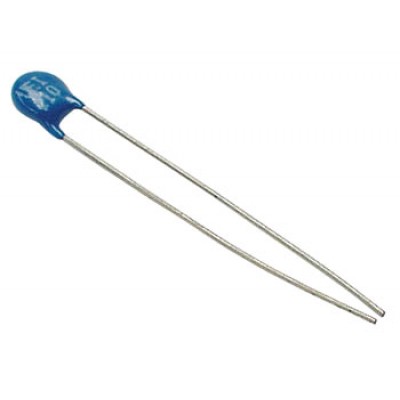

NTC THERMISTOR – 1K

By Boris Landoni on October 10, 2019

For temperature compensation, temperature measurement and control.

Features

material: epoxy-coated

Specifications

nom. resistance: 1 kohm
B-constant (±7%): 3700°K
max. permissible current: 80mA
thermal dissipation constant: 6mW/°C
thermal time constant: 17sec.
dimensions: Ø5mm

Go to Open-Electronics Store
