Matrix display bicolored LED 3mm 32×16

By Boris Landoni on September 20, 2019

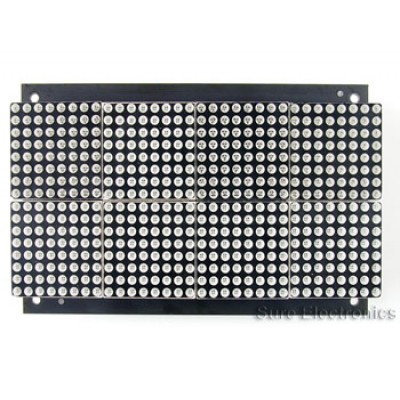

Matrix display made of 8 digits with 64 two-color 3 mm LEDs (green and red) each based on the Holtek HT1632C controller. Can write letters, digits or symbols. It has 16 levels of brightness control, two terminals with 5V output voltage. Up to 4 cards must be connected in series. Power supply: 5 V, dimensions (mm): 128.28 (length) x 81.30 (width) x 23.84 (height). The package includes the matrix display and the 16-pin IDC cable.
