Magnetic Circuit Blocks

By on January 9, 2020
Pin It

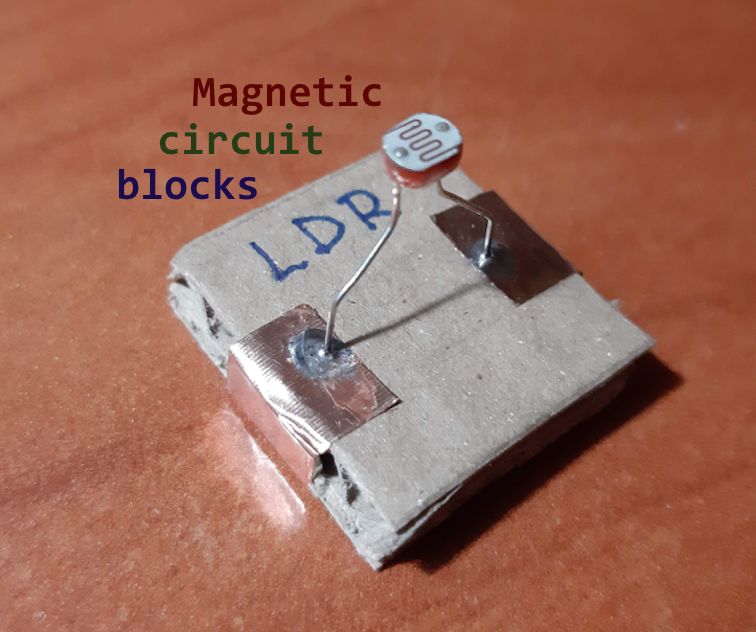

Nothing is better for learning or designing electronics than building real circuits. The breadboard is a popular option but it often results in an incomprehensible spaghetti that has no resemblance to the original schematic and is hard to debug. With this project the connections between the blocks are very reliable since the copper strips of two different blocks are pushed against each other by the magnets under the tape.

More info
