144 7-segment displays make up this delightful digital clock

By Emanuele Signoretta on June 4, 2020

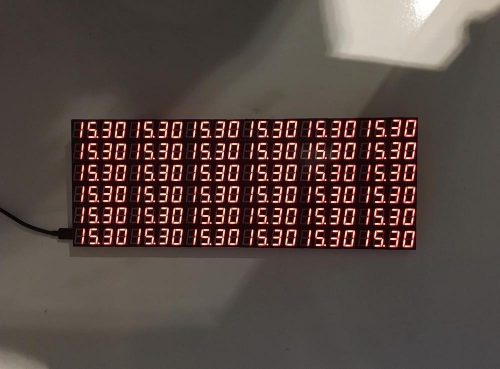

Using 7-segment displays to make a clock is nothing new, but what if you combined 144 of them together to create an epic LED timepiece? That’s exactly how this project was made, allowing it to show surprisingly smooth mega-numbers and a colon set at an angle.

The build itself is controlled by an Arduino Nano, along with an RTC module for timekeeping and 18 MAX7219 drivers to activate over a thousand (1,008) individual segments.

Arduino IDE MAX7219 nano newsline open hardware open source
